FANUC Robot Palletizer

A flexible palletizing solution using FANUC collaborative robots.

Fanuc
Collaborative
Robot

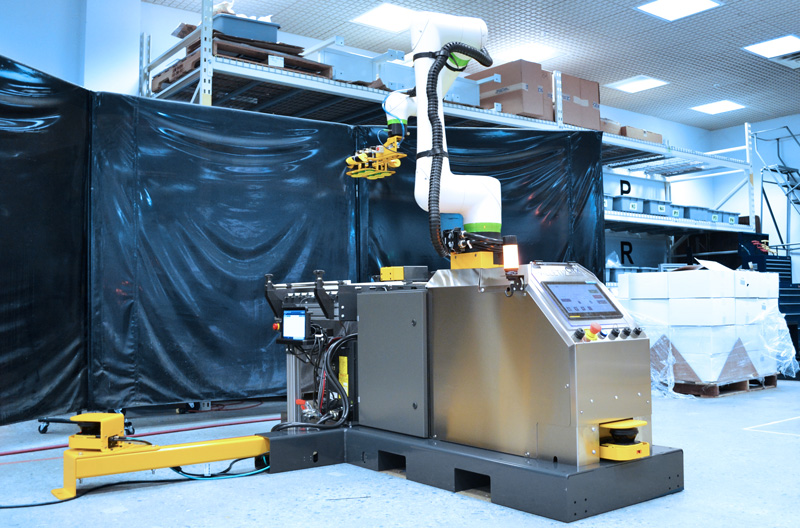

Manufactured by ONExia, a FANUC Authorized Systems Integrator specializing in collaborative robots, the PalletizCRX is a turn-key palletizer using the FANUC CRX-10iA/L cobot.

By using a FANUC cobot, the PalletizCRX requires no physical guarding to operate within the work cell drastically decreasing the footprint of adding automation.

FANUC Cobot Palletizer

The PalletizCRX is a fully collaborative solution for FANUC users looking for a flexible alternative to standard industrial palletizing robots.

PalletizCRX Features

The PalletizCRX requires no programming and can be deployed to an existing packaging line in under an hour.

Minimal footprint – no guarding or caging needed
Portable – easily moved with a forklift or pallet jack
Collaborative – full rating for entire system
Quick deployment – requires a standard outlet and an air line
Continuous operation – palletize to both sides

SYSTEM SPECS

Rate

5-7 picks per minute

Maximum Payload

58 lbs (+/- tooling weight)

Pallet Reach

42″ x 48″

Air / Electric

80 psi / 115 VAC, 15 amps

CUSTOM FEATURES

Slip Sheets

Yes – optional rack available

Conveyors

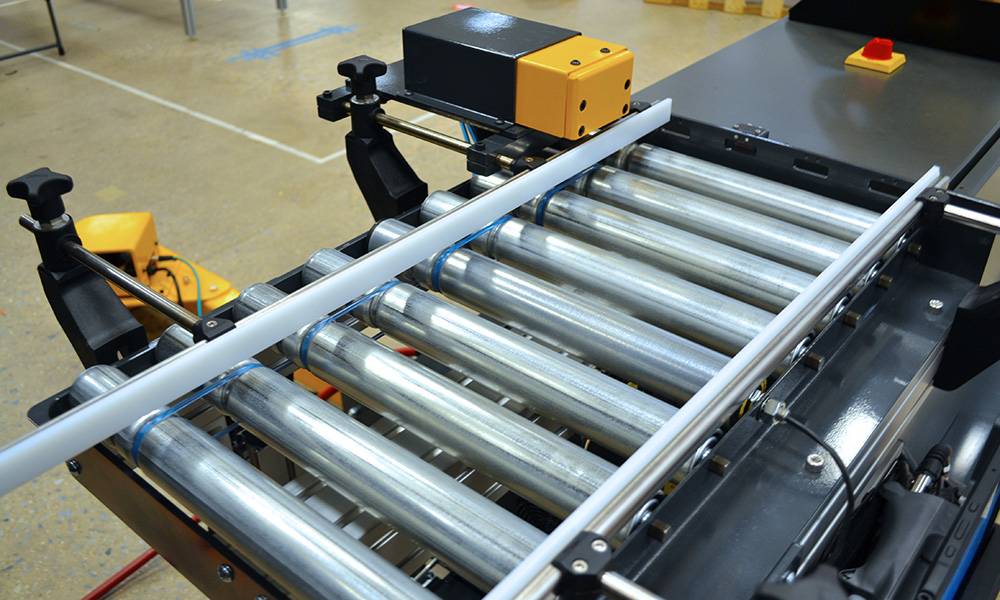

Nesting conveyor & pneumatic pusher

SYSTEM SAFETY

The PalletizCRX is collaborative rated

Safety Scanners (Optional)

Up to 4 scanners can be added

A safety risk assessment is recommended.

Every PalletizCRX system comes with a FANUC CRX collaborative robot integrated with the palletizer base.

For more information about our integration services, visit “onexiarobotics.com.

FANUC CRX30 Cobot Palletizer

Utilizing the 30 kg payload FANUC CRX collaborative robot, the PalletizCRX automates the most ergonomically challenging positions on your packaging line.

FANUC CRX 30 Specs

Payload – 30 kg
Axes – 6
Reach – 1756 mm

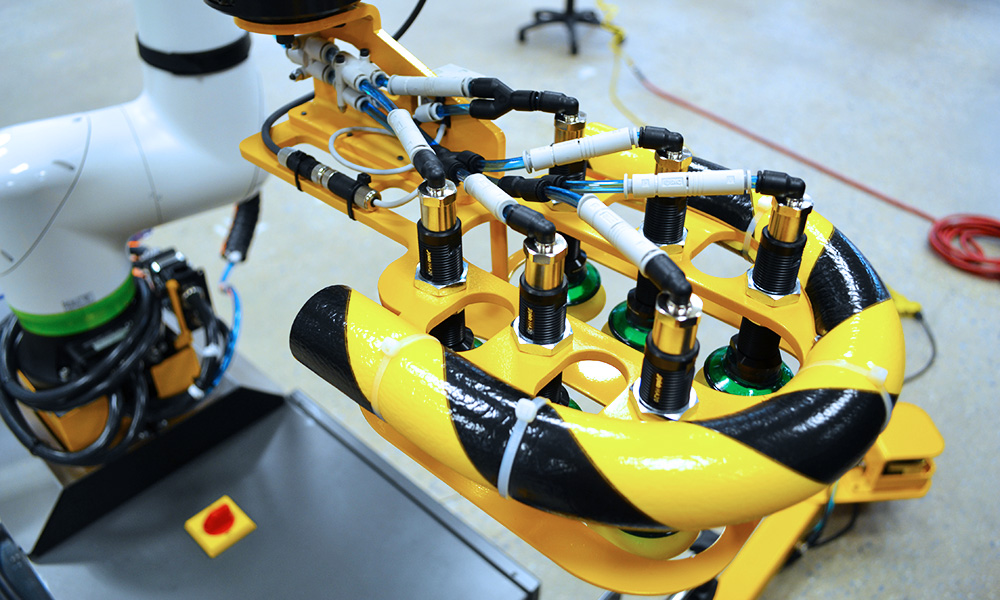

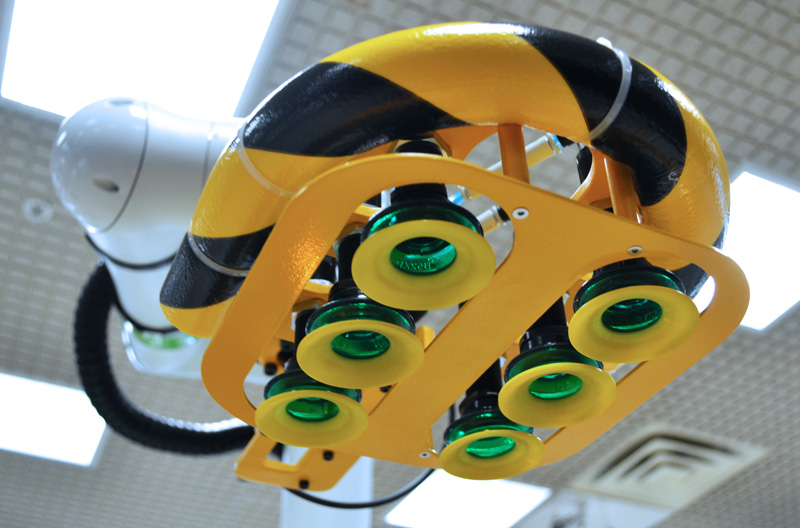

INCREASED THROUGHPUT: By picking multiple lighter weight cases at once, the PalletizCRX reaches industrial robot throughput with a cobot.

FANUC Palletizing Software

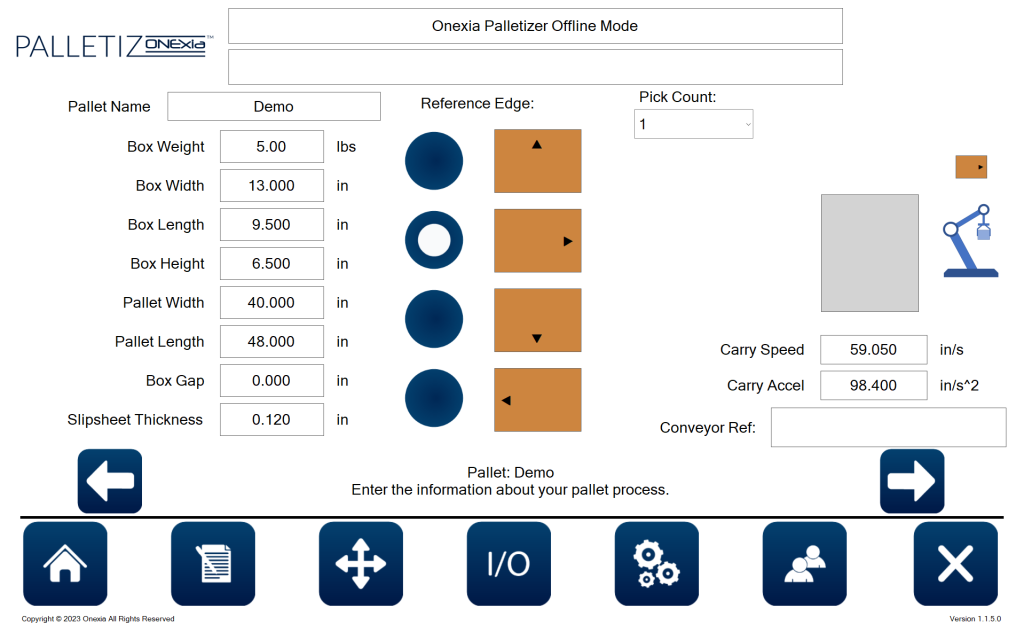

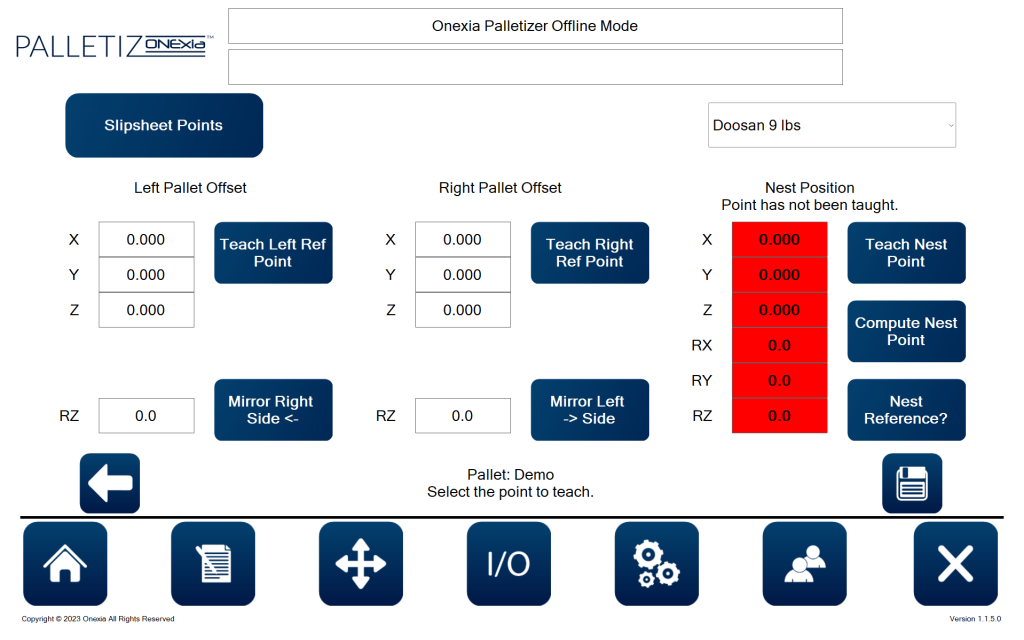

The PalletizCRX comes with custom drag-and-drop palletizing software preloaded on the touchscreen interface.

FANUC CRX30 Cobot Palletizer

A palletizing robot that requires no programming! The PalletizCRX can be quickly adjusted for new pallet configurations as production demands change.

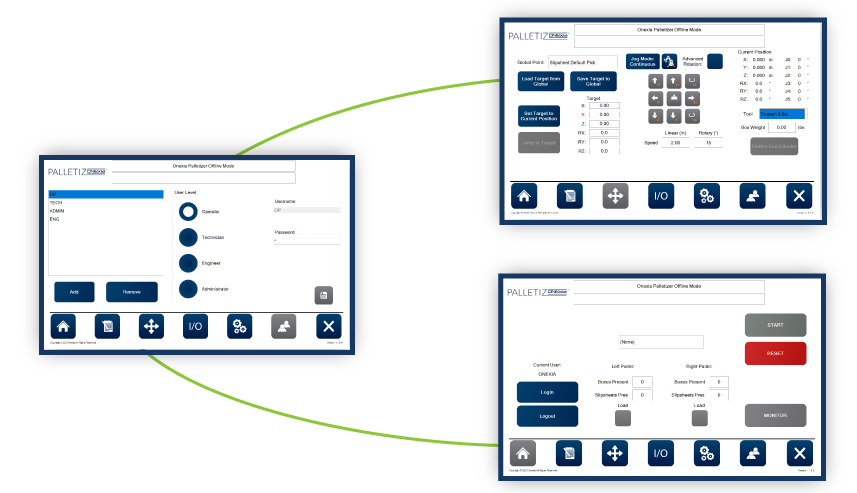

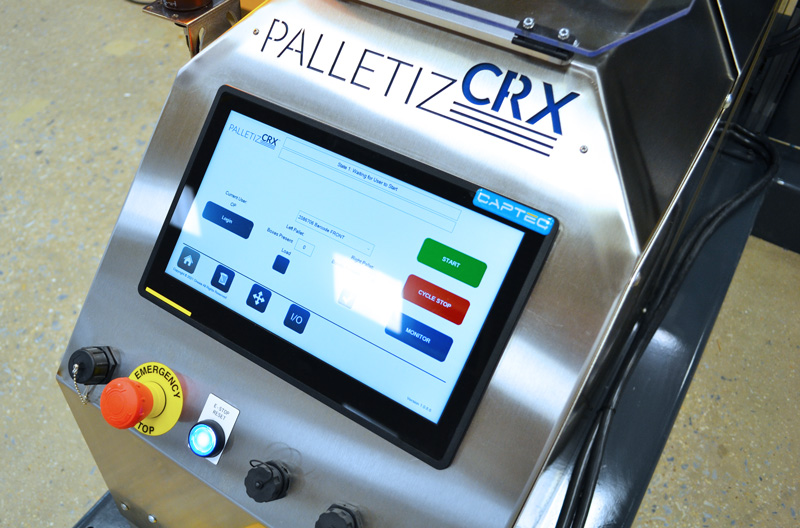

Simplified interface – control the entire system through the embedded touch screen

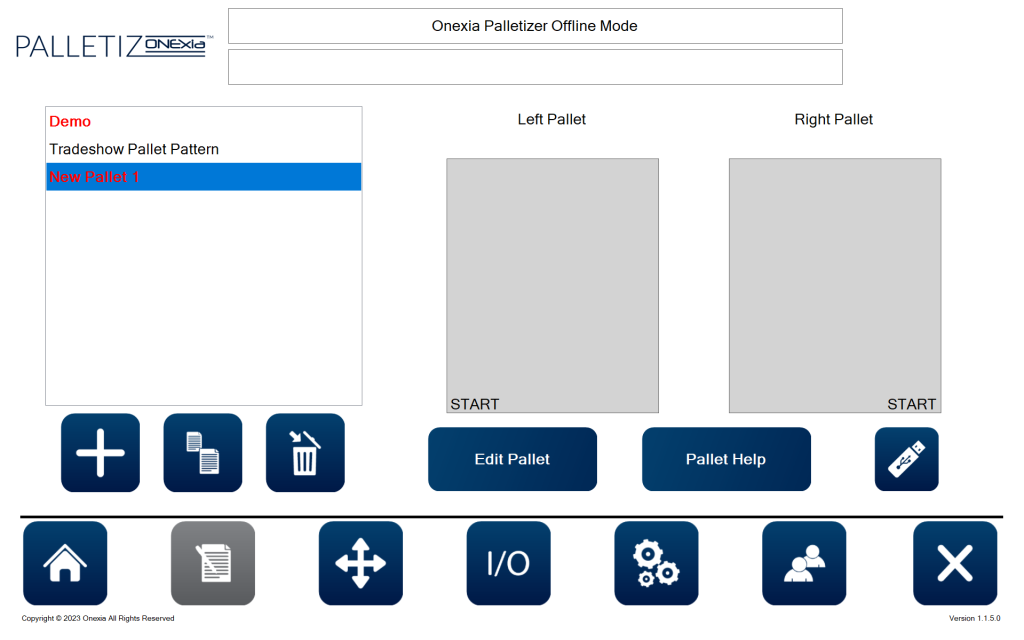

Drag-and-drop software – build pallets with no programming needed

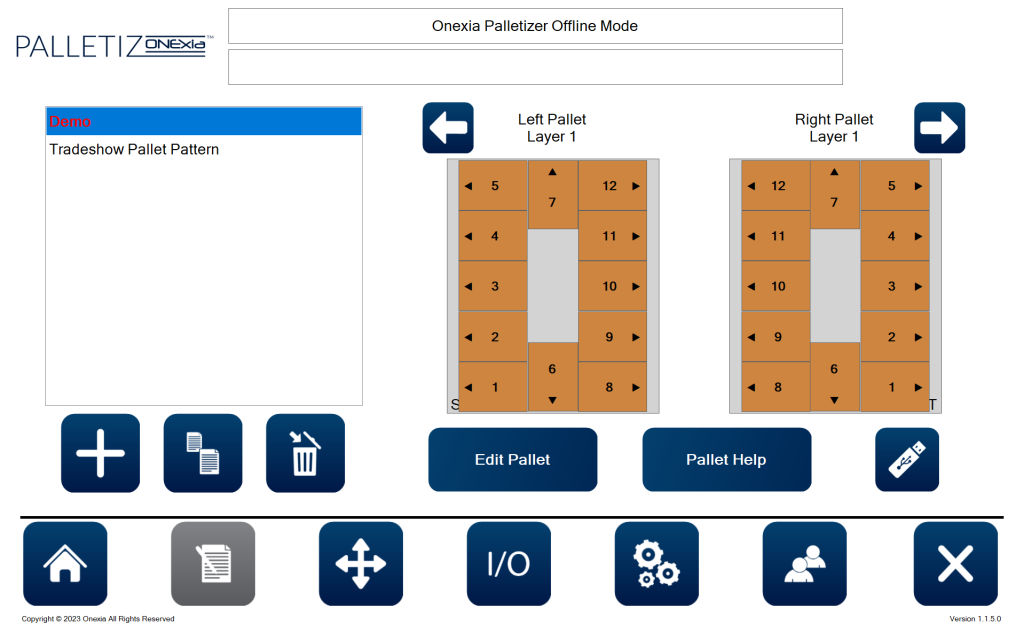

Pallet library – save and recall 100’s of pallets for even quicker changeover
Administrative controls – features can be enabled and disabled based of on user credentials
